ANTI-CONDENSATE PAN
Thermocraft evap & condensate pans for the commercial refrigeration, air condtitioning and transportation industry. Serving the original equipment manufacturers, distributors and service contractors in north america.
Thermocraft Anti-Condensation Pans
These anti-condensate pans are used by leading companies in commercial refrigeration, HVAC, vertical transportation (elevators), and many more. The evaporators use durable and reliable products made from the highest quality components, including NSF certified pans, to evaporate defrost and condensation where no drain line is available or possible. This product line has successfully passed rigorous testing under UL standards in the United States and Canada.
Available in 5 series and 61 different models, electric condensate evaporators can dissipate anywhere from 1.5 to 24 gallons of condensation water per day. The Thermocraft units are manufactured in a variety of sizes and capacity to accommodate all existing product needs. They are customizable to the core.

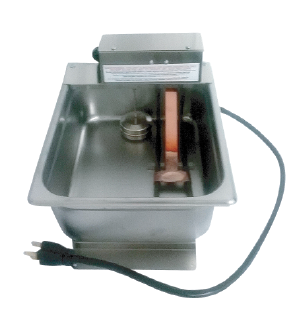

Condensate Evaporation Pans
• Corrosion resistant 20 gauge stainless steel [SUS304] construction.
• Electropolished
• Positive evaporation
• Space saving
• Tubular style heating element
• High limit safety and float switch operation
• High wattage / 3000 watts maximum
• Warranty-One Year from date of installation.
• For use in non-low flash point refrigerant applications
• Cord length: Many variations in length and terminations available.
| Part# | Wattage | Volts | Heater loops | Pan Size | L (A) | W (B) | H (C) | H (D) | H (E) | Capacity (QT) | Float | # of heaters | Amps | Dissipation per day (Gallon) | BIRMINGHAM | SUPCO | FISHER ®EVAPOWAY P/N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Content |
Content |
Content |
Content |
Content |
Content |
||||||||||||
|
Content |
Content |
| Part# | Wattage | Volts | Heater loops | Pan Size | L (A) | W (B) | H (C) | H (D) | H (E) | Capacity (QT) | Float | # of heaters | Amps | Dissipation per day (Gallon) | BIRMINGHAM | SUPCO | FISHER ®EVAPOWAY P/N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40190 | 300 | 110-120 | Double | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 3 | 2.5 | 830134 | ||
| 40191 | 300 | 110-120 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 3 | 2.5 | 830114 | ||
| 40169 | 400 | 110-120 | Single | 1/3x2.5 | 12.8" | 6.9" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 3.3 | 3.5 | 840111 | CP801 | DM04T-1S |
| 40192 | 400 | 110-120 | Single | 1/2x2.5 | 12.8" | 10.43" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 3.3 | 3.25 | 840112 | ||
| 40180 | 500 | 110-120 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 4.17 | 4.5 | 850114, 850113 | CP816 | DM05W-1D |
| 40193 | 500 | 110-120 | Single | 1/3x4 | 12.8" | 6.9" | 4.45" | 6.5" | 3.94" | 4.1 | 4.5" | 1 | 4.17 | 4.25 | 850114A | ||
| 40195 | 500 | 110-120 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 4.17 | 4.25 | 850134 | ||
| 40196 | 600 | 110-120 | Single | 1/2x2.5 | 12.8" | 10.43" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 4.8 | 5 | 860114X | ||
| 40197 | 600 | 110-120 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 4.8 | 5 | 860112X, 860112XF | ||
| 40198 | 600 | 110-120 | Single | 1/3x2.5 | 12.8" | 6.9" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 4.8 | 5 | 860112 | ||
| 40199 | 600 | 110-120 | Single | 1/3x4 | 12.8" | 6.9" | 4.45" | 6.5" | 3.94" | 4.1 | 4.5" | 1 | 4.8 | 5 | 860112A, 860134 | ||
| 40200 | 600 | 110-120 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 4.8 | 5 | 860334,860134x | ||
| 40201 | 800 | 110-120 | Single | 1/2x2.5 | 12.8" | 10.43" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 6.6 | 6.75 | 880112 | ||
| 40202 | 800 | 110-120 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 6.6 | 6.75 | 880114, 880114S, 880113 | ||
| 40170 | 800 | 110-120 | Single | 1/3x2.5 | 12.8" | 6.9" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 6.6 | 6 | 880111, 880111a | CP802 | DM08S-1S |
| 40203 | 800 | 110-120 | Single | 1/3x4 | 12.8" | 6.9" | 4.45" | 6.5" | 3.94" | 4.1 | 4.5" | 1 | 6.6 | 6.75 | 880134X, 880134a | ||
| 40205 | 800 | 110-120 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 6.6 | 6.75 | 880134 | ||
| 40206 | 800 | 208-240 | Double | 1/2x2.5 | 12.8" | 10.43" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 3.3 | 6.75 | 880212 | ||
| 40171 | 800 | 208-240 | Single | 1/3x2.5 | 12.8" | 6.9" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 3.3 | 6 | 880212X | CP802-240 | |
| 40207 | 800 | 208-240 | Single | 1/1x2.5 | 20.8" | 12.8" | 3.1" | 5.25" | 2.5" | 8.3 | 3" | 1 | 3.3 | 6.75 | 880234 | ||
| 40208 | 1000 | 110-120 | Single | 1/2x2.5 | 12.8" | 10.43" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 8.3 | 8.5 | 810120 | ||
| 40174 | 1000 | 110-120 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 8.34 | 8 | 810114, 810114A, 810114X, 810134A, 810113 | CP804HD, CP807 | DM10W-1D |
| 40209 | 1000 | 110-120 | Single | 1/3x2.5 | 12.8" | 6.9" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 8.3 | 8.5 | 810111, 810134X, 810134A | ||
| 40172 | 1000 | 110-120 | Single | 1/3x4 | 12.8" | 6.9" | 4.45" | 6.5" | 3.94" | 4.1 | 4.5" | 1 | 8.34 | 8 | 810134 | CP804 | DM10M-1S |
| 40210 | 1000 | 110-120 | Single | 1/1x2.5 | 20.8" | 12.8" | 3.1" | 5.25" | 2.5" | 8.3 | 3" | 1 | 8.3 | 8.5 | 810120X, 810121X | ||
| 40178 | 1000 | 110-120 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 8.33 | 8 | 810121 | CP808 | DM10WW-1D |
| 40211 | 1000 | 208-240 | Double | 1/2x2.5 | 12.8" | 10.43" | 3.1" | 5.25" | 2.5" | 2.6 | 3" | 1 | 4.8 | 8.5 | 810212 | ||
| 40181 | 1000 | 208-240 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 4.81 | 8 | 810214, 810214X, 810214S, 810223, 810244A | CP817, CP807-240, | DM10W-2D |
| 40173 | 1000 | 208-240 | Single | 1/3x4 | 12.8" | 6.9" | 4.45" | 6.5" | 3.94" | 4.1 | 4.5" | 1 | 4.17 | 8 | 810234A, 810234B,810244Z | CP804-240 | DM10M-3S |
| 40213 | 1000 | 208-240 | Double | 1/1x2.5 | 20.8" | 12.8" | 3.1" | 5.25" | 2.5" | 8.3 | 3" | 1 | 4.8 | 8.5 | 810234X, 810212X1 | ||
| 40168 | 1000 | 208-240 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 4.8 | 8.5 | 810234 | - | - |
| 40175 | 1000 | 208-240 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 4.17 | 8 | 810244 | CP804HD-240 | DM10W-3D |
| 40214 | 1000 | 208-240 | Double | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 4.2 | 8.5 | 810244B, 810244x | ||
| 40215 | 1200 | 110-120 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 10 | 10 | 812114, 812113 | ||
| 40216 | 1200 | 110-120 | Single | 1/3x4 | 12.8" | 6.9" | 4.45" | 6.5" | 3.94" | 4.1 | 4.5" | 1 | 10 | 10 | 812134X, 812134A | ||
| 40218 | 1200 | 110-120 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 10 | 10 | 812134 | ||
| 40219 | 1200 | 208-240 | Double | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 5.8 | 10 | 812214, 812223 | ||
| 40221 | 1200 | 208-240 | Double | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 5.8 | 10 | 812234, 812214a | ||
| 40183 | 1500 | 110-120 | Double | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 12.5 | 12 | 815114, 815113 | CP819 | DM15W-1D |
| 40179 | 1500 | 110-120 | Double | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 12 | 12 | 815134 | CP815 | DM15WW-1D |
| 40184 | 1500 | 208-240 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 7.21 | 12 | 815214 | CP820 | DM15W-1D |
| 40223 | 1500 | 208-240 | Single | 1/3x4 | 12.8" | 6.9" | 4.45" | 6.5" | 3.94" | 4.1 | 4.5" | 1 | 7.21 | 12 | 815234A, 815234AI, 815234B, 815234I | CP821 | DM15WW-2D |
| 40224 | 1500 | 110-120 | Double | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 7.2 | 12.5 | 815223 | ||
| 40189 | 1500 | 208-240 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 6.8 | 12 | 815234 | CP815-240 | DM15WW-3D |
| 40226 | 2000 | 208-240 | Single | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 4.6 | 16.75 | 820214, 820213 | ||
| 40228 | 2000 | 208-240 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 2 | 8.4 | 16.75 | 810234X2 | ||
| 40229 | 2000 | 208-240 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 1 | 4.2 | 16.75 | 820234, 820234X1 | ||
| 40230 | 2400 | 110-120 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 2 | 11.6 | 20 | 812134X2 | ||
| 40231 | 2400 | 208-240 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 2 | 11.6 | 20 | 812234X2 | ||
| 40232 | 3000 | 110-120 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 2 | 20 | 20 | 815134X2, 815121X2 | ||
| 40233 | 3000 | 208-240 | Single | 1/1x4 | 20.8" | 12.8" | 4.45" | 6.5" | 3.94" | 14 | 4.5" | 2 | 13.6 | 24 | 815234X2 | ||
| 40194 | 1000 | 208-240 | Double | 1/2x4 | 12.8" | 10.43" | 4.45" | 6.5" | 3.94" | 6.7 | 4.5" | 1 | 4.81 | 8 | CP818 | DM10W-2S |
